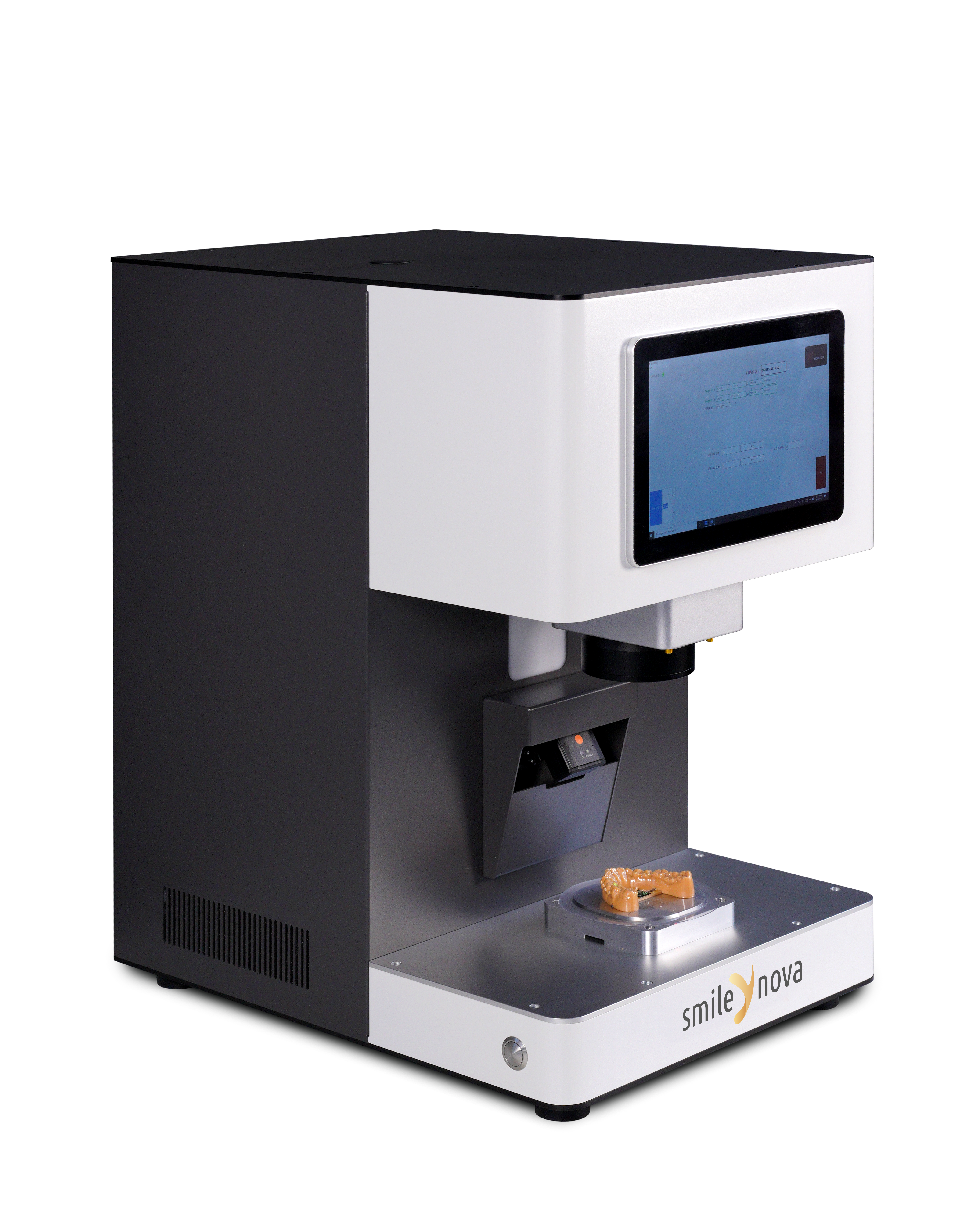

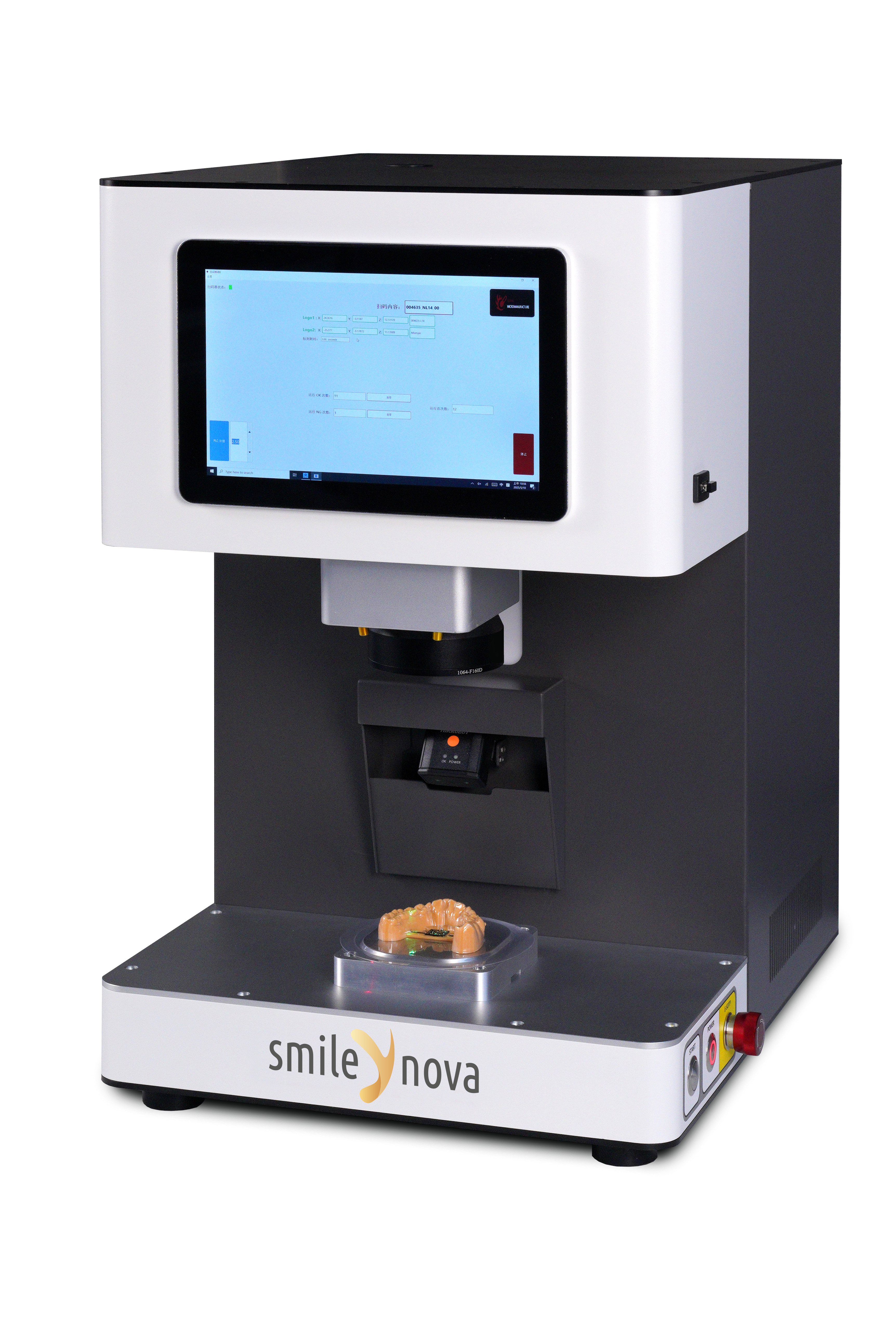

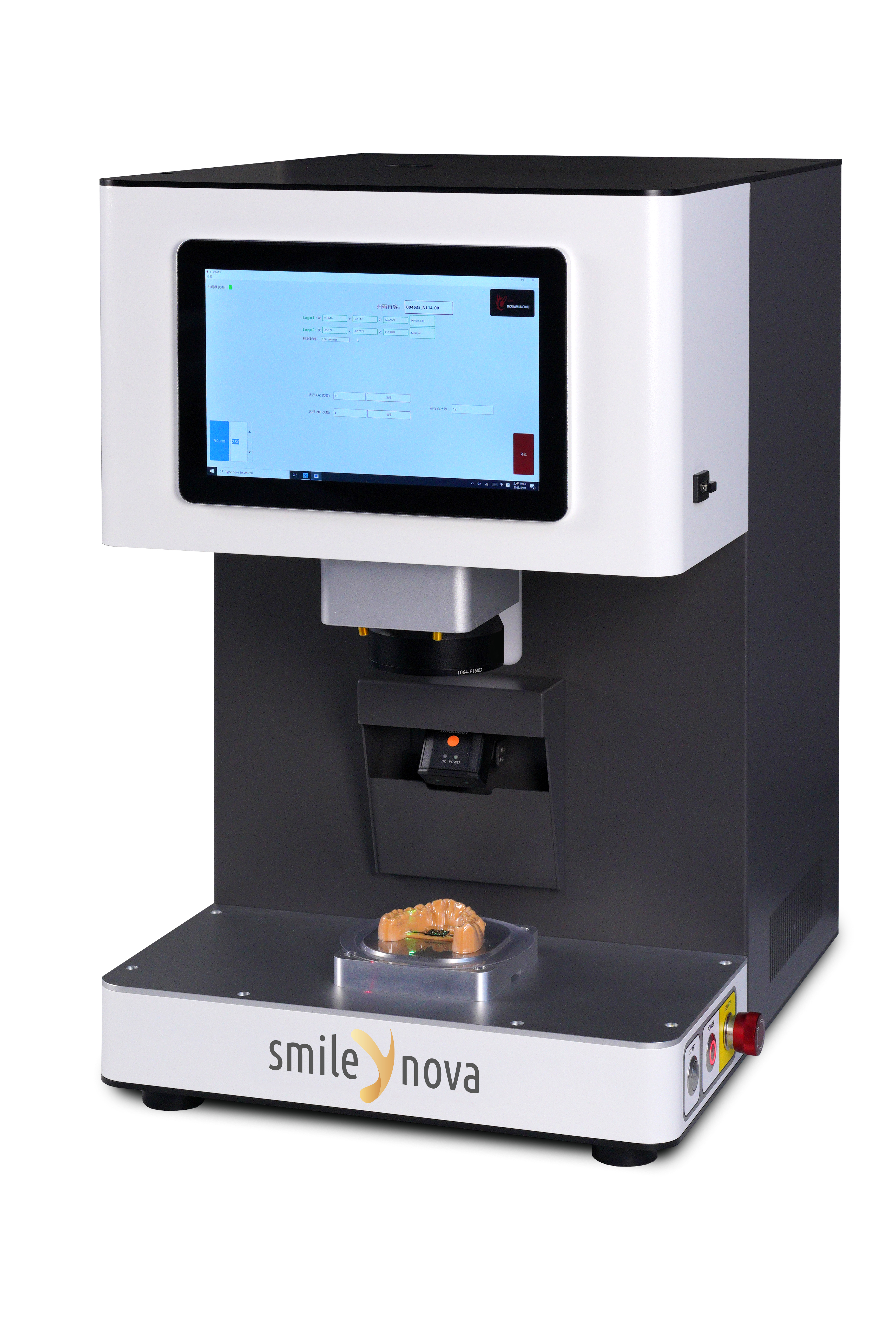

Laser Marking System for Clear Aligners

1. Function Overview

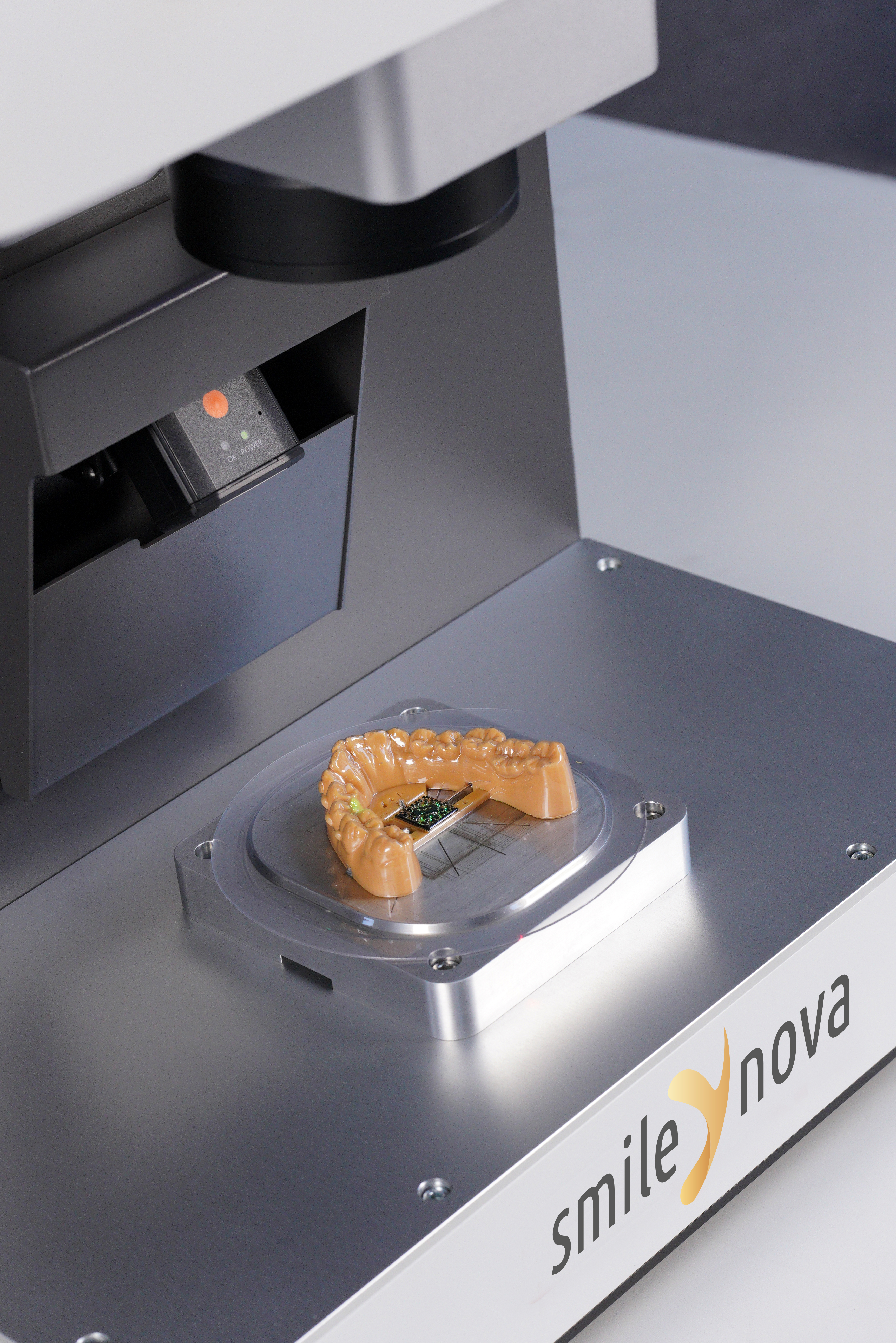

This system is specifically designed for marking clear aligners. It utilizes a code reader to identify the aligner serial number, automatically extracts the laser marking content and coordinate values for each aligner. The system then automatically adjusts the Z-axis for focus alignment, controls the X and Y-direction beams via a laser galvanometer, and uses a pulsed laser to precisely engrave customized content onto each aligner. The entire process for completing 4 marks takes no more than 3.5 seconds.

2. System Components

2.1 Fiber Laser

• Power:  30W

• Laser Wavelength:  1060nm

• Beam Quality:  <1.2 (㎡)

• Laser Type:  Pulsed

• Operational Lifespan:  ≥100,000 hours

• Cooling:  Air-cooled

• Power Supply:  220V 50Hz AC

• Operating Environment:  20℃–26℃, relative humidity <60%

2.2 High-Speed Scanning Galvanometer

• Marking Speed:  ≤70,000 mm/s

• Marking Range:  110mm × 110mm

• Minimum Line Width:  0.012mm

• Repeatability Accuracy:  ±0.002mm

2.3 Z-Axis Control System

• Stepper Motor:  TST42-48P

• Timing Belt Pulley:  XL15/82XL-10mm

2.4 Model Acquisition

• Code Reader:  MV-ID2013EP

2.5 Industrial Computer

• Touchscreen All-in-One PC

2.6 Automatic Marking Software

• This Windows-based software is exclusively developed for marking clear aligners, enabling text and graphics marking at designated positions.

3. Specifications:

• Net Weight: 45 kg

• Dimensions: 50 × 38 × 63 cm
