Aligner Material

Revolutionary clear aligner material for ideal orthodontic biomechanical expression.

Home » Products » Aligner Material

3-Layer TPU Sheet

SmileyNova’s aligner material is made of polyether-based TPU (thermoplastic polyurethane) with 3-layer structure. The sheet features high tensile strength, high modulus, and good biocompatibility, an ideal choice for the production of clear aligner.

The 3-layer solution reaches the balance between the resilience needed for easy insertion and take-off and the rigidity needed for force persistence and durability. Different properties of each layer ensure the ideal force expression required by orthodontic treatment.

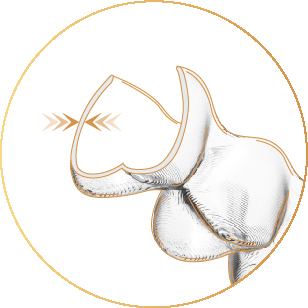

Lighter and Thinner

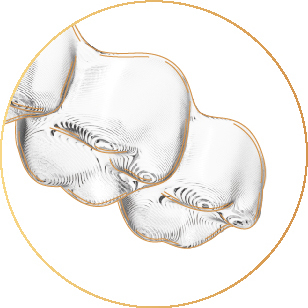

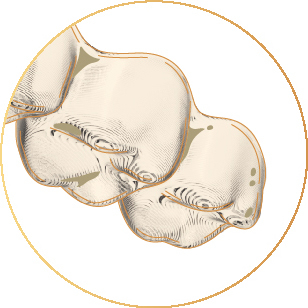

Better Stain Resistance

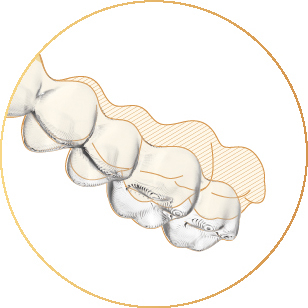

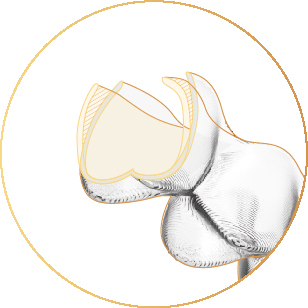

Higher Resilience

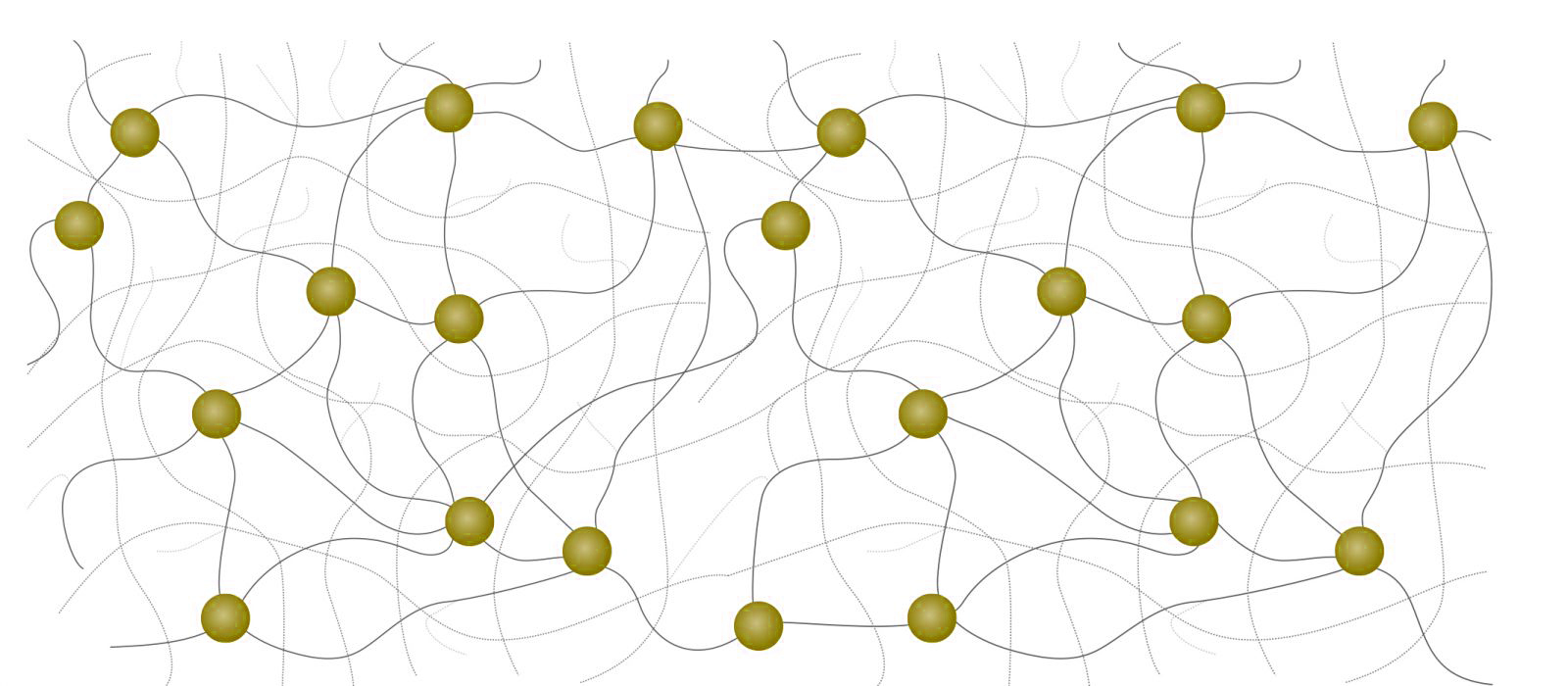

Stronger Tear Resistance

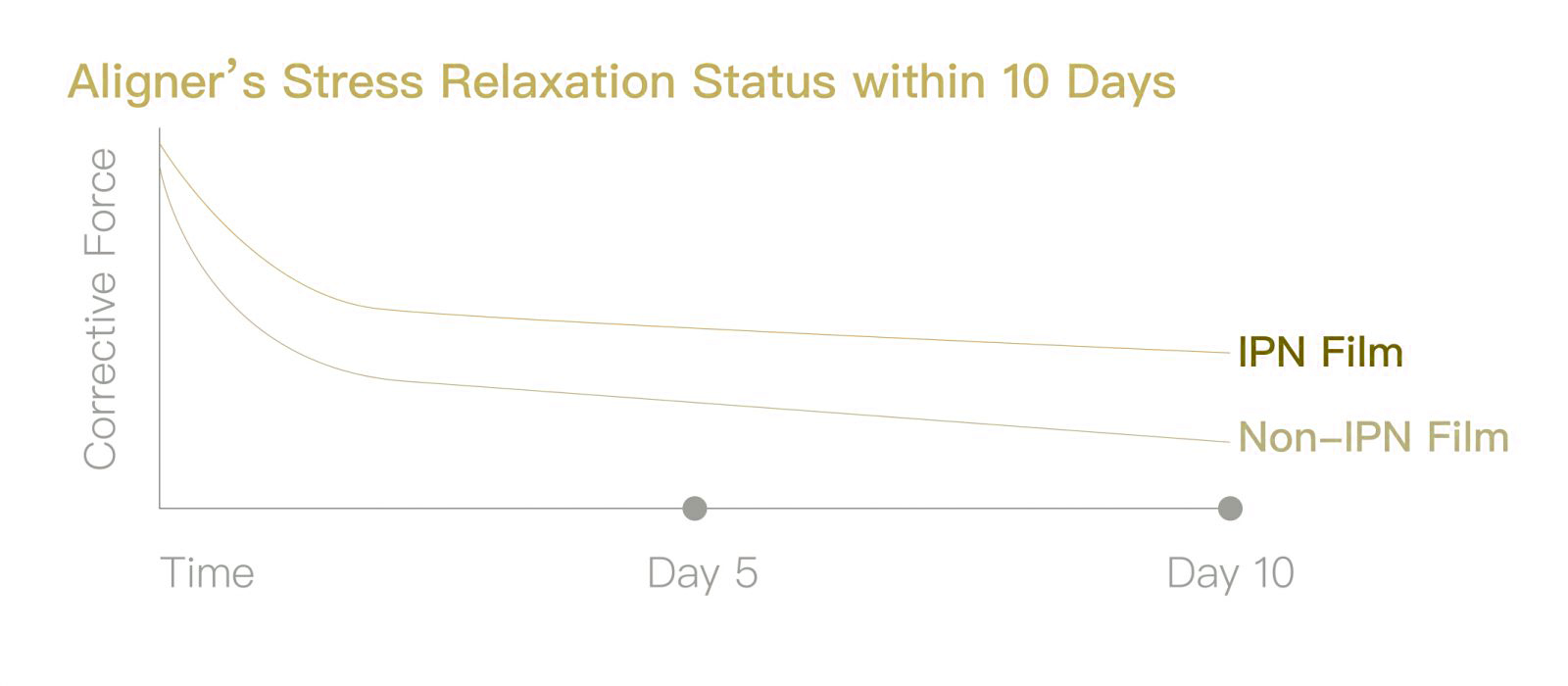

More Durable and Stable

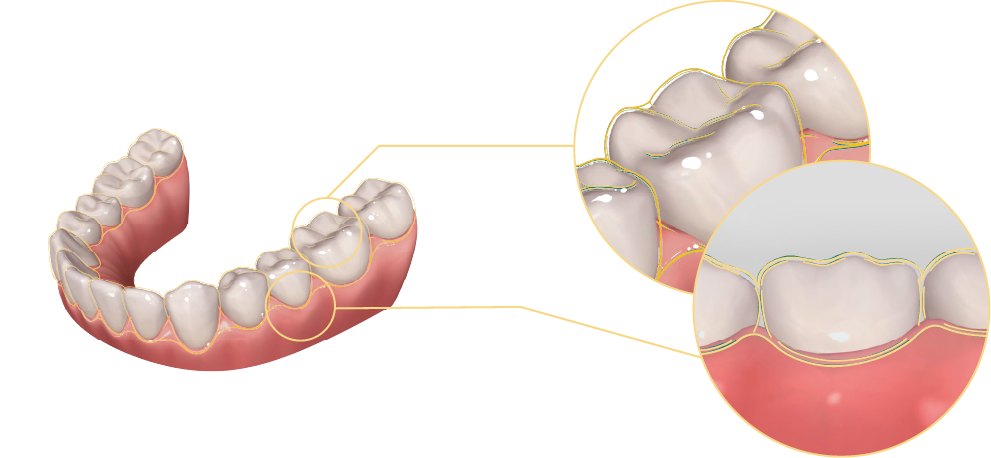

Better Fitting

Physical Properties

Property	Unit	Test Method	Value
Thickness	mm	GB/T 6672-2001	0.7±10%
Specific Gravity	g/cm³	ASTM D792	1.2
Hardness	Shore A	ASTM D2240	82±3
Elongation at Break	%	ASTM D638	150
Tensile Strength at Break	MPa	ASTM D638	67
Tensile Modulus	MPa	ASTM D638	1900
Flexural Modulus	MPa	ASTM D790	2300
Vicat Softening Temp	℃	ASTM D1525	101±5
