Features

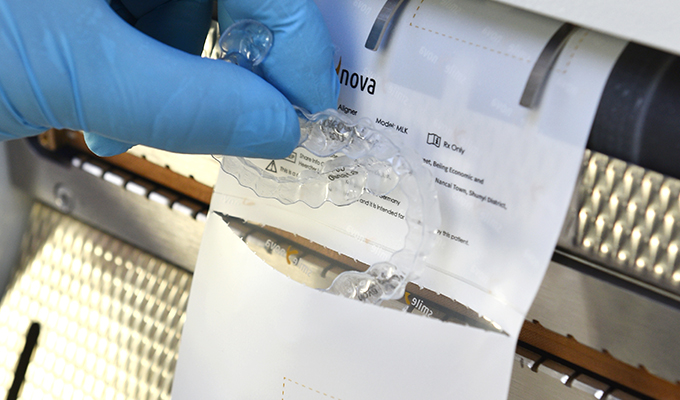

● High Efficiency: Order information can be imported into the SmileyNova LP software, automatically generating the labels in sequence for the entire order. ● Low Cost: PE roll bags for packaging significantly reduces costs. ● Better Experience: Continuous bag-in-bag packaging is convenient for the patient to use. ● Minimum shipping damage: Airbag-style packaging reduces the pressure on clear aligners during shipping. ● Safe operation: The heating section uses a DC power source with an induction heating system, minimizing burn risks. ● Easy to handle: A force switch and foot switch for easy switching. |
|
Main Technical Parameters

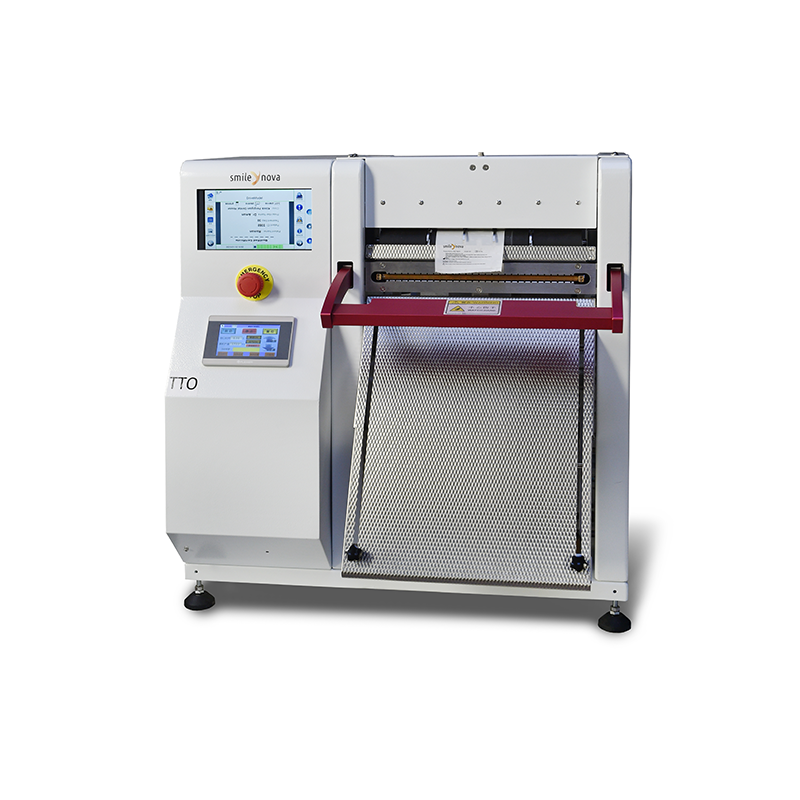

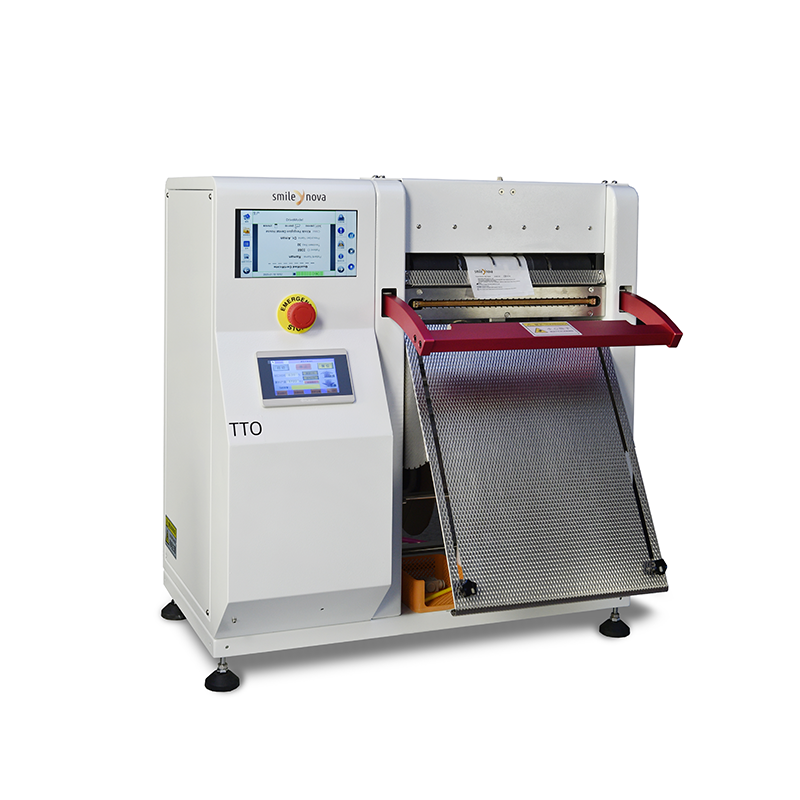

| Model | SN-AP1 |
Net Weight | 90-95 kg |
Dimensions | L700 x W440 x H770 mm |
Power Supply | 240V (50Hz) |
Power | 1.5 KW |
External Air Source | 0.5-0.7 MPa |
Packaging Bag Thickness | 0.04-0.10 mm |
Packaging Speed | 15-25 pieces/min |
| Printing Type | Thermal Transfer |
Ribbon Type | TTO |
| Supporting Software | SmileyNovaLP |
Q&A:
Can any 3rd party rolls of plastic bags be used?
Yes, plastic bags that can be heat-sealed and support thermal transfer are compatible; however, please ensure that the bag material is compatible with the thermal ribbon.
What is the size and location on each bag of the markings? How do we modify this?
Our standard printer has a 50 mm wide print head. If a larger width is required, a higher-spec thermal transfer machine will be needed, and the price will vary accordingly. The exact cost can only be determined once the required print width is confirmed. The parallel position of the print can be manually adjusted by moving the transfer machine left or right to align with the bag roll, which is very convenient.
