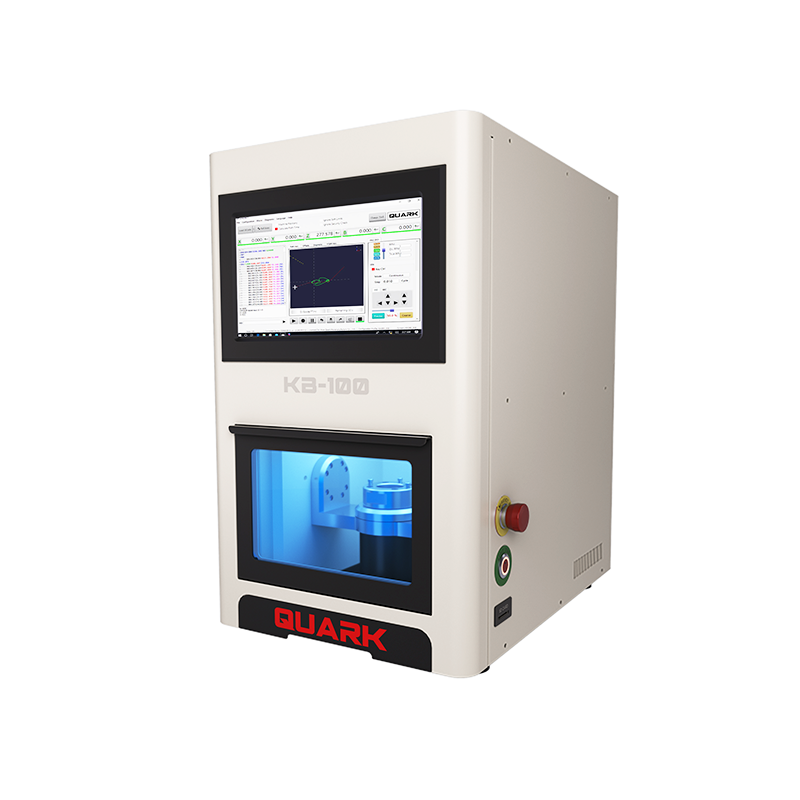

This compact and versatile 5-axis aligner trimming machine combines lightweight design with powerful performance, making it an ideal solution for trimming clear aligners with precision and efficiency. Its user-friendly interface ensures simple operation, while its low-maintenance design reduces downtime, making it perfect for busy clinics and hospitals. The machine’s high-precision cutting capabilities enable smooth and accurate trimming of aligners, ensuring a perfect fit for patients.
Designed as a cost-effective desktop solution, it saves space without compromising on functionality. Its robust construction and advanced 5-axis technology allow for complex trimming tasks with ease, enhancing workflow efficiency. Whether for small clinics or larger medical facilities, this machine delivers reliable performance, making it an essential tool for clear aligner production and customization.
Size
Product Parameter
Spindle Speed | 24,000rpm |
Spindle Power | 250W |
Travel, X-axis | 80mm |
Travel, Y-axis | 80mm |
Travel, Z-axis | 80mm |
Travel, B-axis | +100°/-30° |
Travel, C-axis | ±infifinity |
Max Axis Speed | 3000mm/min |
Standard Size Collet | 3.175mm |
Data Interface | SD |
Power Input | 500W |
Power | 230/115VAC，50/60Hz |

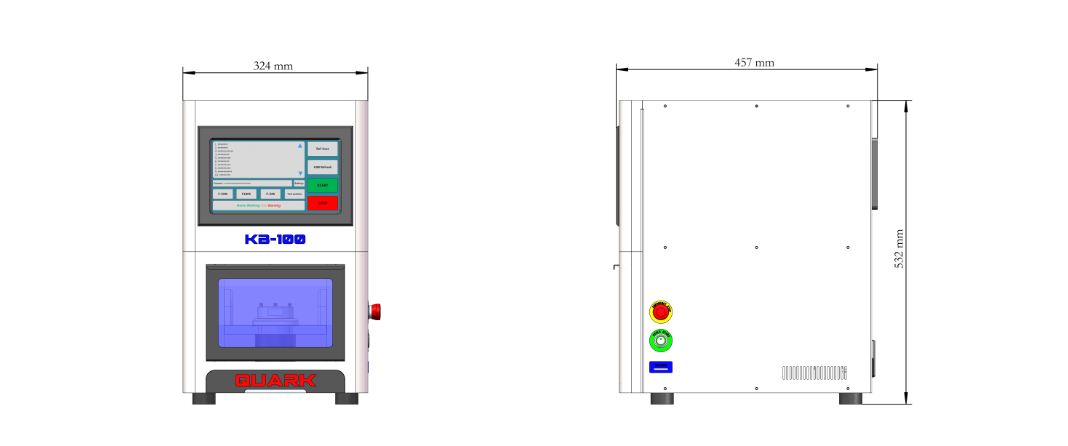

Size | 324×457×532mm |
Weight Net | ≈50kg |

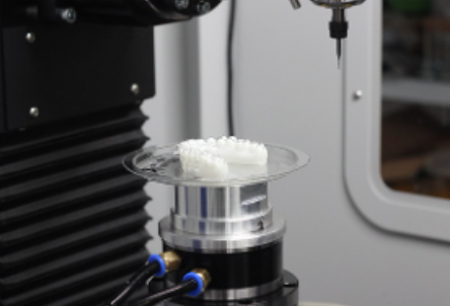

QR reader |

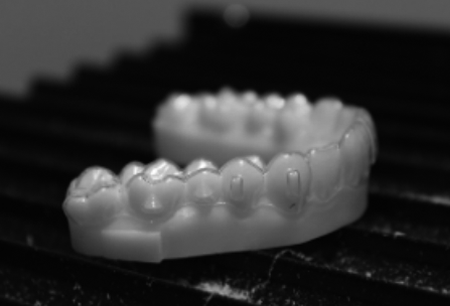

Natural granite structure |

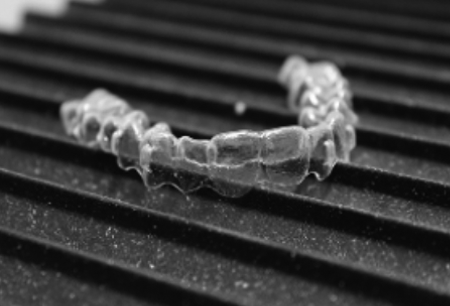

700 pc per day (8 hours) |

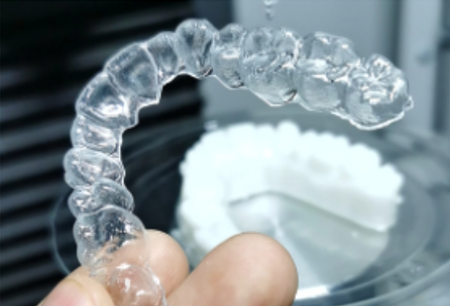

High-quality trimming |
Six Advantages
More professional, safer, and more dedicated to serve users
● Professional Professional CNC motion control | ● Stable operation All products are driven by AC servo motors | ● Powerful High-speed spindle with strong torque |
● Precise Precise harmonic driver | ● User friendly Convenient, quick and easy to operate | ● Technical Supports Remote supports and training |
